Union and Intersection Types

October 23, 2023

Table of Contents

Union and Intersection Types, Conceptually

Union and intersection types can conceptually be thought of as logical boolean operators (AND, OR) as they pertain to types. Here are a couple of example sets we’ll use for this discussion

py
Evens = { 2, 4, 6, 8 }
OneThroughFive = { 1, 2, 3, 4, 5 }

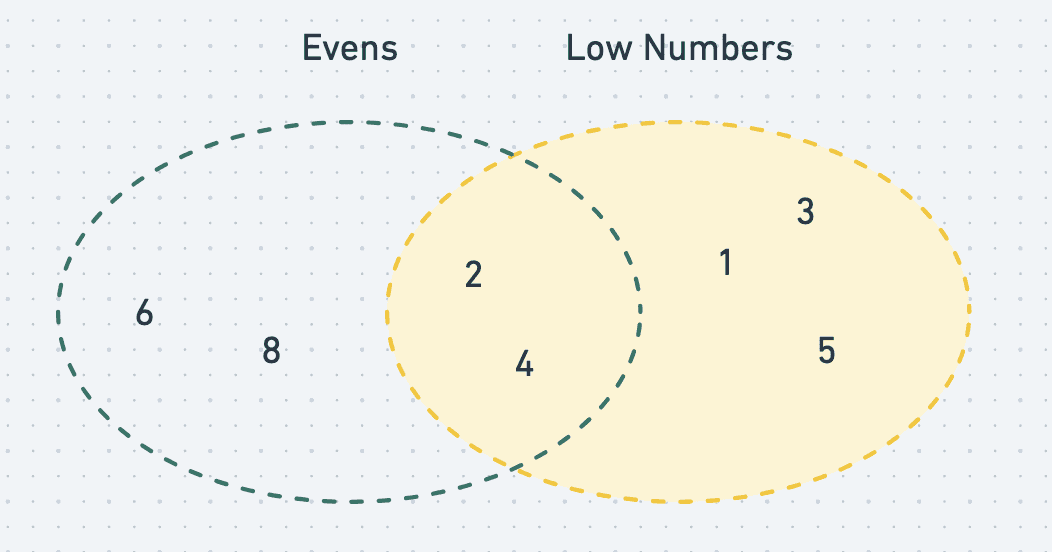

venn diagram of evens and numbers one through five

Union types |

A union type can be thought of as OR, for types, and TypeScript uses the pipe (|) symbol to represent the Union type operator

Using the example above, if we wanted to find OneThroughFive | Evens we’d combine all the members of the OneThroughFive set and all of the members of the Evens set.

py
OneThroughFive | Evens => { 1, 2, 3, 4, 5, 6, 8 }

If you think about the assumptions we could make about a member of this set at random, we couldn’t be sure whether it’s between 1 and 5, and we couldn’t be sure whether it’s odd.

Intersection types &

An intersection type can be thought of as AND, for types, and TypeScript uses the ampersand (&) symbol to represent the Intersection type operator

Using the example again, if we wanted to find OneThroughFive & Evens we’d find all members that the OneThroughFive and Evens sets have in common

py
OneThroughFive & Evens => { 2, 4 }

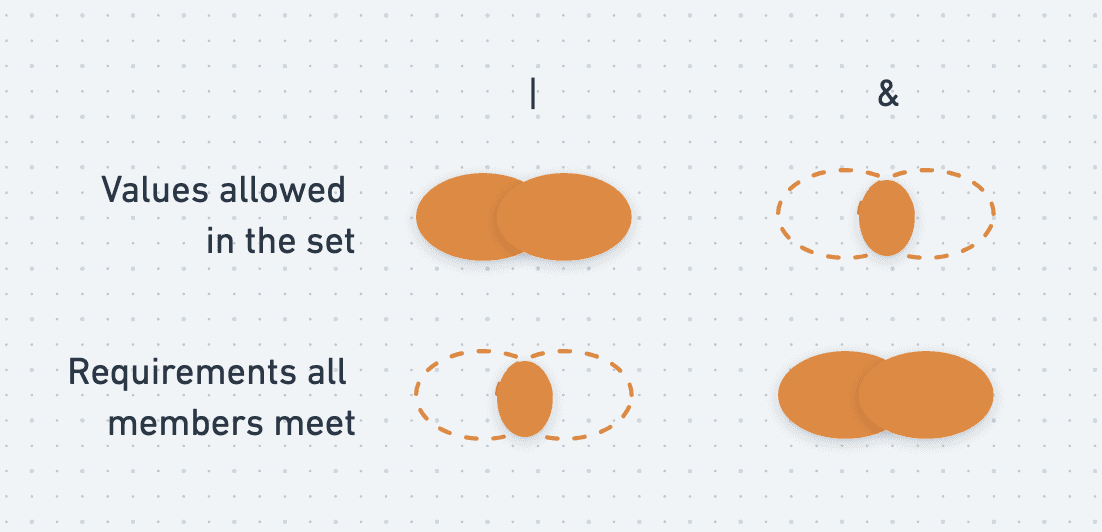

allowed values in union and intersection types

Union Types in TypeScript

Let’s think back to the concept of literal types from an earlier example

ts
const humidity = 79

const humidity: 79
Try

If we wanted to create a union type that represented the set { 1, 2, 3, 4, 5 } we could do it using the | operator. We can also use the type keyword to give this type a name (we’ll talk more about this in the next chapter)

ts
type OneThroughFive = 1 | 2 | 3 | 4 | 5

type OneThroughFive = 1 | 2 | 3 | 4 | 5
let lowNumber: OneThroughFive = 3

let lowNumber: OneThroughFive
lowNumber = 8
Type '8' is not assignable to type 'OneThroughFive'.2322Type '8' is not assignable to type 'OneThroughFive'.Try

and we could create another type called Evens to represent the set { 2, 4, 6, 8 }

ts
type Evens = 2 | 4 | 6 | 8

type Evens = 2 | 4 | 6 | 8
let evenNumber: Evens = 2;

let evenNumber: Evens
evenNumber = 5;
Type '5' is not assignable to type 'Evens'.2322Type '5' is not assignable to type 'Evens'.Try

Explicitly creating the union type is now simple

ts
let evenOrLowNumber = 5 as Evens | OneThroughFive;
let evenOrLowNumber: 2 | 4 | 6 | 8 | 1 | 3 | 5
Try

Union types often appear where control flow can produce a different value for different code paths.

For example, the flipCoin() function will return "heads" if a number selected from (0, 1) is >= 0.5, or "tails" if <=0.5.

ts
function flipCoin() {
  if (Math.random() > 0.5) return "heads" // the "heads" branch
  return "tails" // the "tails" branch
}

const outcome = flipCoin()

const outcome: "heads" | "tails"
Try

Let’s make this a bit more interesting by using tuples, that is structured as follows:

  • [0] either "success" or "failure"

  • [1] something different, depending on the value found in [0]

    • "success" case: a piece of contact information: { name: string; email: string; }
    • "error" case: an Error instance
ts
const success = ["success", { name: "Mike North", email: "mike@example.com"} ] as const

const success: readonly ["success", {
    readonly name: "Mike North";
    readonly email: "mike@example.com";
}]
const fail = ["error", new Error("Something went wrong!") ] as const

const fail: readonly ["error", Error]
Try

We’ll still decide which of these things actually happens based on our 50/50 coin flip from above

ts
function maybeGetUserInfo() {
  if (flipCoin() === "heads") {
    return success
  } else {
    return fail
  }
}

const outcome2 = maybeGetUserInfo()

const outcome2: readonly ["success", {
    readonly name: "Mike North";
    readonly email: "mike@example.com";
}] | readonly ["error", Error]
Try

this type is significantly more interesting.

Working with union types

Let’s continue with our example from above and attempt to do something with the “outcome” value.

First, let’s destructure the tuple and see what TypeScript has to say about its members

ts
const outcome2 = maybeGetUserInfo()

const [first, second] = outcome2
first

const first: "success" | "error"
second

const second: {
    readonly name: "Mike North";
    readonly email: "mike@example.com";
} | Error
Try
emoji-bulb A good time to poke around

Click the Try button and explore first and second in the TS playground. Explore what’s available in the autocomplete for each.

ts
const outcome2 = maybeGetUserInfo()
const [first, second] = outcome2
first.s

  • search
  • slice
  • small
  • split
  • startsWith
  • strike
  • sub
  • substr
  • substring
  • sup
second.n

  • name
Try

We can see that the autocomplete information for the first value suggests that it’s a string. This is because, regardles of whether this happens to be the specific "success" or "error" string, it’s definitely going to be a string.

The second value is a bit more complicated — only the name property is available to us. This is because, both our “user info object, and instances of the Error class have a name property whose value is a string.

Let’s also look at our previous example involving {1,2,3,4,5} | {2,4,6,8} and consider how these AND and OR type operators describe the set of possible values, and the assumptions we can make about any given value in the set

ts
function printEven(even: Evens): void {}
function printLowNumber(lowNum: OneThroughFive): void {}
function printEvenNumberUnder5(num: 2 | 4): void {}
function printNumber(num: number): void {}

let x = 5 as Evens | OneThroughFive;

// What does Evens | OneThroughFive accept as values?
let evenOrLowNumber: Evens | OneThroughFive;
evenOrLowNumber = 6 //✔️ An even
evenOrLowNumber = 3 //✔️ A low number
evenOrLowNumber = 4 //✔️ A even low number


// What requirements can `Evens | OneThroughFive` meet?
printEven(x)
Argument of type '1 | 2 | 3 | 4 | 5 | 6 | 8' is not assignable to parameter of type 'Evens'.
  Type '1' is not assignable to type 'Evens'.2345Argument of type '1 | 2 | 3 | 4 | 5 | 6 | 8' is not assignable to parameter of type 'Evens'.
  Type '1' is not assignable to type 'Evens'.
printLowNumber(x)
Argument of type '1 | 2 | 3 | 4 | 5 | 6 | 8' is not assignable to parameter of type 'OneThroughFive'.
  Type '6' is not assignable to type 'OneThroughFive'.2345Argument of type '1 | 2 | 3 | 4 | 5 | 6 | 8' is not assignable to parameter of type 'OneThroughFive'.
  Type '6' is not assignable to type 'OneThroughFive'.
printEvenNumberUnder5(x)
Argument of type '1 | 2 | 3 | 4 | 5 | 6 | 8' is not assignable to parameter of type '2 | 4'.
  Type '1' is not assignable to type '2 | 4'.2345Argument of type '1 | 2 | 3 | 4 | 5 | 6 | 8' is not assignable to parameter of type '2 | 4'.
  Type '1' is not assignable to type '2 | 4'.
printNumber(x)
Try

There’s some interesting asymmetry at play here. A Evens | OneThroughFive can accept a wide range of values, but because allows for this flexibility, it doesn’t meet the type-checking requirements for most of the print* functions.

*Essentially, | means “anything in either set” in terms of the allowed values, and because of this only the behavior that’s definitely present on every member of both sets is available to us

Narrowing with type guards

Ultimately, we need to “separate” the two potential possibilities for our value, or we won’t be able to get very far. We can do this with type guards.

Type guards are expressions, which when used with control flow statement, allow us to have a more specific type for a particular value.

I like to think of these as “glue” between the compile time type-checking and runtime execution of your code. We will work with one that you should already be familiar with to start: instanceof.

ts
const outcome = maybeGetUserInfo()
const [first, second] = outcome

const second: {
    readonly name: "Mike North";
    readonly email: "mike@example.com";
} | Error
if (second instanceof Error) {
  // In this branch of your code, second is an Error
  second

const second: Error
} else {
  // In this branch of your code, second is the user info
  second

const second: {
    readonly name: "Mike North";
    readonly email: "mike@example.com";
}
}
Try

TypeScript has a special understanding of what it means when our instanceof check returns true or false, and creates a branch of code that handles each possibility.

It gets even better…

Discriminated Unions

ts
const outcome = maybeGetUserInfo()
const [first, second] = outcome

if (first === "error") {
  // In this branch of your code, second is an Error
  second

const second: Error
} else {
  // In this branch of your code, second is the user info
  second

const second: {
    readonly name: "Mike North";
    readonly email: "mike@example.com";
}
}
Try

TypeScript understands that the first and second positions of our tuple are linked. What we are seeing here is sometimes referred to as a discriminated or “tagged” union type.

Intersection Types in TypeScript

Intersection types in TypeScript can be described using the & (ampersand) operator.

Let’s look again at our example using sets of numbers

ts
function printEven(even: Evens): void {}
function printLowNumber(lowNum: OneThroughFive): void {}
function printEvenNumberUnder5(num: 2 | 4): void {}
function printNumber(num: number): void {}

let y = 4 as Evens & OneThroughFive;

let y: 2 | 4

// What does Evens & OneThroughFive accept as values?
let evenAndLowNumber: Evens & OneThroughFive;
evenAndLowNumber = 6 //✔️ An even
Type '6' is not assignable to type '2 | 4'.2322Type '6' is not assignable to type '2 | 4'.
evenAndLowNumber = 3 //✔️ A low number
Type '3' is not assignable to type '2 | 4'.2322Type '3' is not assignable to type '2 | 4'.
evenAndLowNumber = 4 //✔️ A even low number

// What requirements can `Evens & OneThroughFive` meet?
printEven(y)
printLowNumber(y)
printEvenNumberUnder5(y)
printNumber(y)
Try

Again, we see some degree of asymmetry, but it’s almost like it’s in the opposite direction compared to union types. The intersection type can accept a very narrow range of values, but because of this, it can meet the type-checking requirements of all four print* functions.

Essentially, & means “anything that is in both sets” in terms of the allowed values, and because of this, we can use “any of the behavior definitely present on members of either set”.

venn diagram of evens and numbers one through five

Union and intersection types

It is far less common to use intersection types compared to union types. I expect it to be at least a 50-to-1 ratio for you in practice. A real-world case where you’ll find (and appreciate) an intersection type is Object.assign(a, b)
